Remotes

Technical Details

1104LD

2014

3014

5014

3104

5104

5104V

Specifications

Size Range

0.10 - 1.0 μm

0.2 - 2μm

0.3 - 25μm

0.5 - 25μm

0.3 - 25μm

0.5 - 25μm

Channel Sizes

Standard: 0.10, 0.15, 0.2, 0.25, 0.3, 0.5, 0.7, 1.0 μm

Standard: 0.2, 0.3μm
Standard: 0.2, 0.5μm
Optional: 0.2, 0.3, 0.5, 1.0μm
Optional: 0.2, 0.3, 0.5, 2.0μm

Standard: 0.3, 0.5μm
Standard: 0.3, 1.0μm
Standard: 0.3, 3.0μm
Optional: 0.3, 0.5, 1.0, 5.0μm

Standard: 0.5, 5.0μm
Optional: 0.5, 1.0, 5.0, 10.0μm
Optional: 0.5, 5.0, 10.0, 25.0μm

Standard: 0.3, 0.5μm
Optional: 0.3, 0.5, 0.7, 1.0μm; 0.3, 0.5, 1.0, 5.0μm;
Optional: 0.3, 0.5, 5.0, 10.0μm

Standard: 0.5, 5.0μm; 0.5, 10.0μm
Optional: 0.5, 1.0, 5.0, 10.0μm; 0.5, 5.0, 10.0, 25.0μm

Flow Rate

1.0 CFM (28.3 LPM)

0.1 CFM (2.83 LPM)

1.0 CFM (28.3 LPM)

Laser Source

Laser Diode

Zero Count Level

< 1 Count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C)

Concentration Limits

1,000,000 particles /ft3 (34,300,000/m3 ) @ 10% coincidence loss

4,000,000 Particles/ft3@10% Coincidence loss suitable for ISO classes 1-8 cleanrooms

1,000,000 Particles/ft3@10% Coincidence loss suitable for ISO classes 1-8 cleanrooms

Calibration

NIST Traceable ISO 21501-4 Compliant and Accredited ISO 17025

Vacuum Requirements

External Vacuum >18” (45.72 cm) of Hg

Air Flow

Internally Monitored

Communication Modes

Serial - 485 Modbus RJ45

LED Indicators

Power, Flow, Service, Sampling

Data Storage

Rotating Buffer, 2000 Records

Supporting Software

LMS XChange, Lighthouse Monitoring System; LMS Express; Express RT; LMSNet

Environmental Sensors

(Optional) Temperature/Relative Humidity Probe 32 - 122F (0-50C)+/-1F (0.5C); 0 - 100% RH +/-2%

Connector

RJ45

Industrial RJ45

Power

24 VDC

Dimensions

10.5” (w) x 7.65” (h) x 3.35” (d) [26.67 x 19.43 x 8.51 cm]

1.7”(l) x 4.2”(w) x 3”(h) [4.3 x 10.7 x 7.6 cm]

1.7"(l) x 4.2"(w) x 3"(h) [4.3 x 10.7 x 7.6 cm]

1.7”(l)x4.2”(w)x3”(h) [4.3x10.7x7.6cm]

5.42” (l) x 2.14” (w) x 3.58” (h), [13.76 cm (l) x 5.43 cm (w) x 9.09 cm (h)]

Environmental Conditions

Operating

50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing

Storage

14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing

Get a Quote

One for All

A remote for any application you can throw at us

Our line of remotes were built directly from customer feedback and those “special” applications that our customers challenge us with every day. We built this for you, with you, and because of our customers. Join the movement.

Remote 1104LD
0.10 – 5.0 µm Particle Size Range
1.0 CFM Flow Rate
Remote 2014
0.2 – 2.0 µm Particle Size Range
0.1 CFM Flow Rate
Remote 3014
0.3 – 25 µm Particle Size Range
0.1 CFM Flow Rate
Remote 3104
0.3 – 25 µm Particle Size Range
1.0 CFM Flow Rate
Remote 5014
0.5 – 25 µm Particle Size Range
0.1 CFM Flow Rate

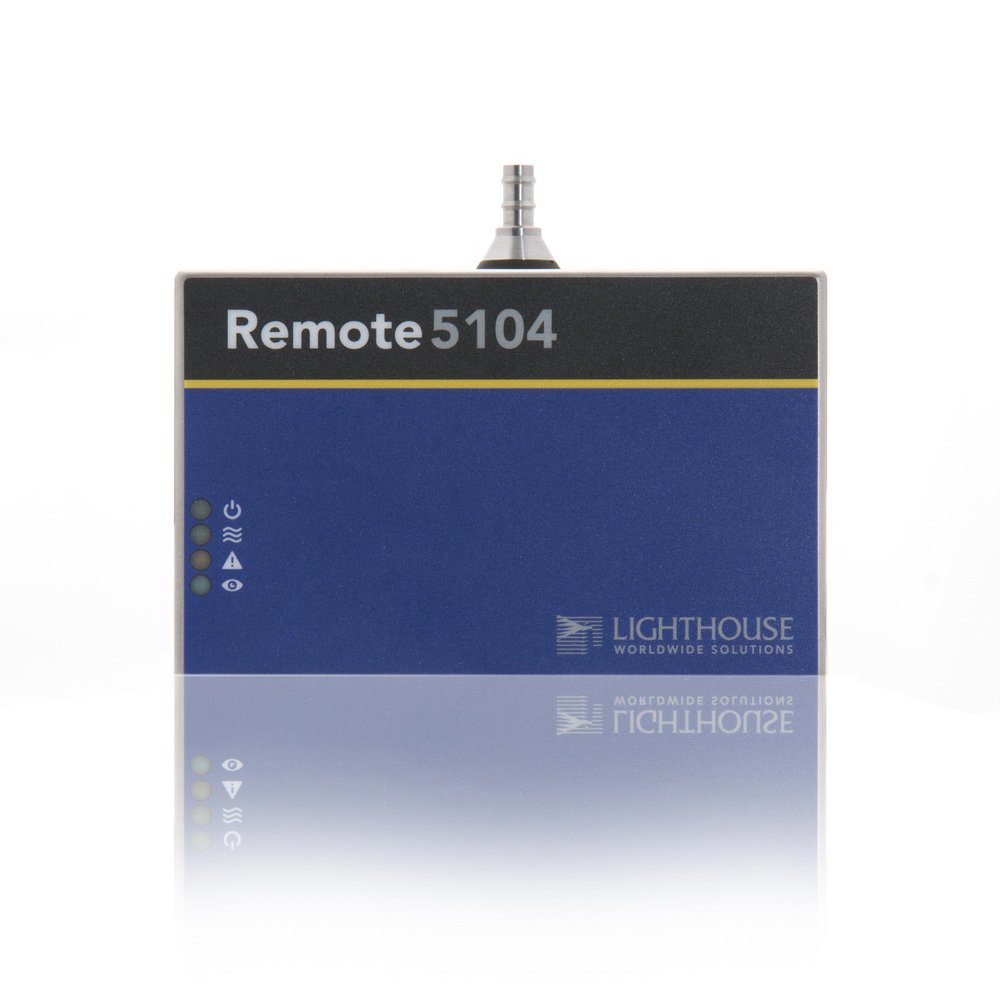

Remote 5104
0.5 – 25 µm Particle Size Range
1.0 CFM Flow Rate
Remote 5104V
0.5 – 5.0 µm Particle Size Range
1.0 CFM Flow Rate

Key Features:

0.10 – 5.0 µm Sensitivity
1.0 CFM (28.3 LPM) Flow Rate
Up to 8 Channels of Simultaneous Data
World’s Smallest 1.0 CFM 0.10 µm counter
Meets ISO 21501-4 Standards
Long Life Laser Diode
Small Footprint
Status Indicators
RS-485 MODBUS (R1100 Pulse output)
Stainless Steel Enclosure
Interfaces to Facility Monitoring Systems
Uses External Vacuum Source
Designed for Reliability
Designed to Ensure 21 CFR Part 11 Compliance when used with Additional Software
No Routine Laser Tube Replacements

Key Features:

0.2 – 2.0 µm Particle Size Range
0.1 CFM (2.83 LPM) Flow Rate
4 Channels of Simultaneous Data
RS-485 Modbus Output
Meets 21501-4 Standards
Status Indicators
External Alarm Output
Stainless Steel Enclosure
Facility Monitoring Systems Interface
Versatile Mounting Options
External Vacuum Source
Designed for Reliability

Key Features:

0.3 – 25 µm Particle Size Range
0.1 CFM (2.83 LPM) Flow Rate
4 Channels of Simultaneous Data
RS-485 Modbus Output
Meets 21501-4 Standards
Status Indicators
External Alarm Output
Stainless Steel Enclosure
Facility Monitoring Systems Interface
Versatile Mounting Options
External Vacuum Source
Designed for Reliability

Key Features:

0.3 – 25 µm Particle Size Range
1.0 CFM (28.3 LPM) Flow Rate
4 Channels of Simultaneous Data
RS-485 Modbus Output
Status Indicators
Meets ISO 21501-4 Standards
External Alarm Output
Facility Monitoring Systems Interface
Stainless Steel Enclosure
Versatile Mounting Options
External Vacuum Source
Designed for Reliability

Key Features:

0.5 – 25 µm Particle Size Range
0.1 CFM (2.83 LPM) Flow Rate
4 Channels of Simultaneous Data
RS-485 Modbus Output
Meets 21501-4 Standards
Status Indicators
External Alarm Output
Stainless Steel Enclosure
Facility Monitoring Systems Interface
Versatile Mounting Options
External Vacuum Source
Designed for Reliability

Key Features:

0.5 – 25 µm Particle Size Range
1.0 CFM (28.3 LPM) Flow Rate
4 Channels of Simultaneous Data
RS-485 Modbus Output
Meets 21501-4 Standards
Status Indicators
External Alarm Output
Stainless Steel Enclosure
Facility Monitoring Systems Interface
Versatile Mounting Options
External Vacuum Source
Designed for Reliability

Key Features:

VHP Compatible
Class 1 Division 2 Rating
Built-in Flow Monitoring
0.5 – 5.0 µm
1.0 CFM (28.3 LPM) Flow Rate
Up to 4 channels of simultaneous data
Meets ISO 21501-4 standards
Real-time continuous monitoring
Small size
316L Stainless Steel, Wash Down Resistant / Splash-Tight Enclosure
Status Indicators
RS-485 Modbus
Interfaces to Facility Monitoring Systems
Uses External Vacuum Source
Designed for Reliability
2 Year Warranty

Instrument Files

Title	Download
Datasheet – Remote 2014, 3104, 5014, 5104	Download
Operating Manual – Remote 2014, 3014, 3104, 5014, 5104	Download
Operating Manual – Remote 1100, 1104 LD	Download
Datasheet – Remote 1100,1104LD	Download
Operating Manual – Remote 5104V	Download
Datasheet – Remote 5104V	Download
