| Vertex50 | |
Specifications |
|
| Size Range | 50 - 200 nm |
| Channels | 4 |
| Standard Channel Sizes | 50 nm, 100 nm, 150 nm, 200 nm |
| Flow Rate | 100 ml/min |
| Sample Volume | 5.0 mL/min |
| Zero Count Level | ≤ 20 count/L |
| Laser Source | Solid-state laser |
| Calibration | NIST Traceable |
| Communication Modes | Ethernet, Serial RS-485, 4-20mA |
| Display | TFT Color Touch Screen |
| Concentration Limit | 10,000 counts/mL @ 10% coincidence loss |
| Enclosure | 316L stainless steel |
| Sample Inlet/Outlet Connection | 1/4" Flaretek™ |
| Environmental Conditions Operating | 50°F to 104°F (10°C to 40°C), 20% to 95% non-condensing |
| Environmental Conditions Storage | 14°F to 122°F (-10°C to 50°C), up to 98% non-condensing |
| Sample Temperature | 50°F to 122°F (10°C to 50°C) |
| Sample Pressure | 20 PSI to 72 PSI (138 kPa to 496 kPa) |
| Wetted Surface Materials | Quartz, PFA, Kalrez, PTFE |
| Communication Protocol | MODBUS TCP, MODBUS Serial, 4-20mA |
| Power | External Supply: Rated input 120-240V AC 50/60Hz, 0.7A - 1.4A. Rated Output: 24V DC, 5A |
| Dimensions | 9.0”(w) x 13.4”(d) x 8.4”(h) [22.9 x 34.0 x 21.3 cm] |
| Weight | 13.5 lbs (6.1 kg) |
Accessories |
|
| Included | 24V power adapter, power cord (US/UK/EU/CN), 1.8m USB-RS485 serial cable with industrial connector, 25’ ethernet cable with industrial connector, USB flash drive with Operators Manual, 2 x 10-foot sample inlet and outlet tubes (with flared tips and lock nuts), flow cell cleaning kit, calibration certificate and carrying case. |
| Optional | Printed operating manual; additional tubing, additional serial or ethernet cables with industrial connector, flow cell cleaning kit. |
Where Gamma Immunity and Sensitivity Meet
The Vertex Series from Lighthouse Worldwide Solutions redefines performance in liquid particle counting. Available in two models — the Vertex 50 and Vertex 100 — this line delivers unparalleled detection sensitivity and compact precision for ultrapure water applications.

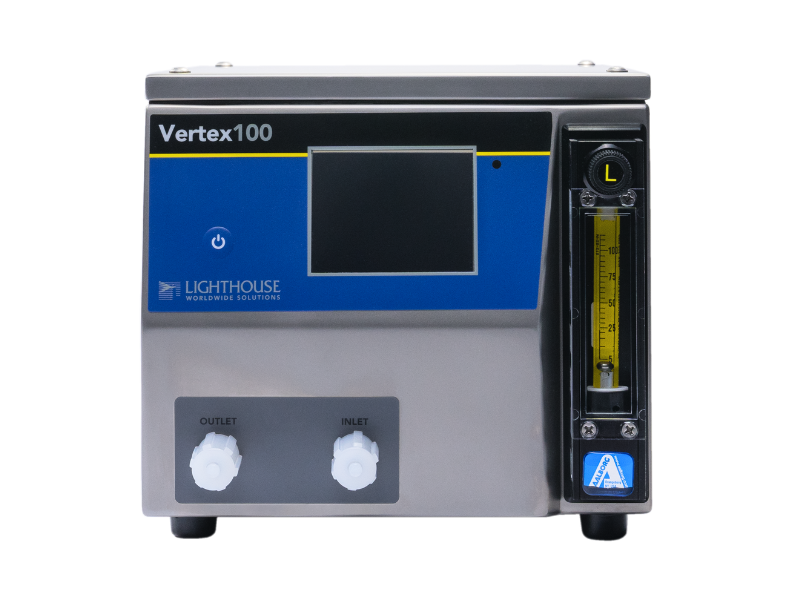

The Vertex 50 is the smallest and lightest 50 nm liquid particle counter on the market, featuring the industry’s lowest zero count levels and integrated manual flow control. The Vertex 100, designed for 100 nm sensitivity, maintains the same compact footprint while setting a new benchmark for ultraclean monitoring at larger channel sizes.
Gamma Immunity
Lighthouse’s advanced photodetector technology has reduced optical noise and minimized gamma-ray interference twentyfold, ensuring the detection of only true particle counts in your ultrapure water system. Count subtraction is not required because Lighthouse instruments achieve the lowest false count rates in the industry. Both the Vertex 50 and Vertex 100 report counts in real time—without delay—providing reliable, immediate results.
Early Detection and Fast Recovery
The Vertex 50 and Vertex 100 are designed for rapid response. After a contamination event, each system returns to baseline levels within approximately 120 seconds, supporting early detection and quick recovery in critical water systems.
Want to learn more about where gamma immunity and sensitivity meet? Contact your local Lighthouse representative today.
