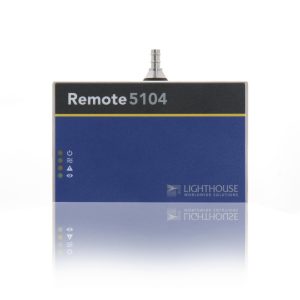

| 1104LD | 2012 | 3012 | 5012 | 3102 | 5102 | 2014 | 3014 | 5014 | 3104 | 5104 | 5102V | 5104V | |
Specifications |
|||||||||||||
| Size Range | 0.10 - 1.0 μm | 0.2 - 2μm | 0.3 - 25μm | 0.5 - 25μm | 0.3 - 25μm | 0.5 - 25μm | 0.2 - 2μm | 0.3 - 25μm | 0.5 - 25μm | 0.3 - 25μm | 0.5 - 25μm | ||
| Channel Sizes | Standard: 0.10, 0.15, 0.2, 0.25, 0.3, 0.5, 0.7, 1.0 μm | Standard: 0.2, 0.3μm Standard: 0.2, 0.5μm |
Standard: 0.3, 0.5μm Standard: 0.3, 1.0μm Standard: 0.3, 3.0μm |
Standard: 0.5, 5.0μm Standard: 0.5, 10.0μm |
Standard: 0.3, 0.5μm Standard: 0.3, 1.0μm Standard: 0.3, 3.0μm |
Standard: 0.5, 5.0μm Standard: 0.5, 10.0μm |
Standard: 0.2, 0.3μm Standard: 0.2, 0.5μm Optional: 0.2, 0.3, 0.5, 1.0μm Optional: 0.2, 0.3, 0.5, 2.0μm |
Standard: 0.3, 0.5μm Standard: 0.3, 1.0μm Standard: 0.3, 3.0μm Optional: 0.3, 0.5, 1.0, 5.0μm |
Standard: 0.5, 5.0μm Optional: 0.5, 1.0, 5.0, 10.0μm Optional: 0.5, 5.0, 10.0, 25.0μm |
Standard: 0.3, 0.5μm Optional: 0.3, 0.5, 0.7, 1.0μm; 0.3, 0.5, 1.0, 5.0μm; Optional: 0.3, 0.5, 5.0, 10.0μm |
Standard: 0.5, 5.0μm; 0.5, 10.0μm Optional: 0.5, 1.0, 5.0, 10.0μm; 0.5, 5.0, 10.0, 25.0μm |
Standard: 0.5, 5.0μm; Optional: 0.5, 10.0; 0.5, 25.0 μm |
Standard: 0.5, 5.0 µm Optional 4 Channels: 0.5, 1.0, 5.0, 25.0 µm |
| Counting Efficiency | 50% @ 0.1 μm; 100% for particles > 0.15 μm (per JIS) | 50% @ 0.2μm; 100% for particles > 0.3μm (per JIS) | 50% @ 0.3μm; 100% for particles > 0.45μm (per JIS) | 50% @ 0.5μm; 100% for particles > 0.75μm (per JIS) | 50% @ 0.3μm; 100% for particles > 0.45μm (per JIS) | 50% @ 0.5μm; 100% for particles > 0.75μm (per JIS) | 50% @ 0.2μm; 100% for particles > 0.3μm (per ISO 21501-4) | 50% @ 0.3μm; 100% for particles > 0.45μm (per ISO 21501-4) | 50% @ 0.5μm; 100% for particles > 0.75μm (per ISO 21501-4) | 50% @ 0.3 μm; 100% for particles > 0.45 μm (per ISO 21501-4) | 50% @ 0.5 μm; 100% for particles > 0.75 μm (per ISO 21501-4) | ||
| Flow Rate | 1.0 CFM (28.3 LPM) | 0.1 CFM (2.83 LPM) | 1.0 CFM (28.3 LPM) | 0.1 CFM (2.83 LPM) | 1.0 CFM (28.3 LPM) | ||||||||
| Laser Source | Long Life Laser Diode | Laser Diode | |||||||||||
| Zero Count Level | <1 count / 5 minutes (per JIS) | < 1 count / 5 minutes (per ISO 21501-4) | |||||||||||
| Concentration Limits | 500,000 Particles / ft3 (17,150,000 / m3) @ 5% Coincidence Loss, per ISO 21501-4 | 2,000,000 Particles / ft3 @ 5% Coincidence Loss | 500,000 Particles / ft3 @ 5% Coincidence Loss | ||||||||||
| Calibration | NIST Traceable, per ISO 21501-4 | NIST Traceable | |||||||||||
| Vacuum Requirements | External Vacuum required, nominal 1.0 CFM >18" (45.72 cm) of Hg | External Vacuum >18” (45.72 cm) of Hg | |||||||||||
| Air Flow | - | Internally Monitored | Critical Orifice controlled | Internally Monitored | |||||||||
| Communication Modes | RS 485 MODBUS | 4-20mA | RS-485 MODBUS | 4-20mA | RS-485/MODBUS | ||||||||
| LED Indicators | Power, Flow, Service, Sampling | Power, Service | Power, Flow, Service, Sampling | Power, Service | Power, Flow, Service, Sampling | ||||||||
| Data Storage | - | Rotating Buffer, 2000 Records | - | Rotating Buffer, 2000 Records | |||||||||
| Supporting Software | Lighthouse Monitoring System, LMS Express, LMS Express RT, LMS Express RT Plus | Lighthouse Monitoring System | LMS XChange, Lighthouse Monitoring System; LMS Express; Express RT; LMSNet | ||||||||||
| Environmental Sensors | - | (Optional) Temperature/Relative Humidity Probe 32 - 122F (0-50C)+/-1F (0.5C); 0 - 100% RH +/-2% | - | ||||||||||
| External Alarm Output | - | Normally Open (NO), Dry-contact, Rated 0-60 VDC/VAC, 1 Amp | - | ||||||||||
| Connector | Screw Terminal | RJ45 | Industrial RJ45 | ||||||||||
| Enclosure | Stainless steel | 316L Stainless Steel, Wash Down Resistant | 316L Stainless Steel, Wash Down Resistant/Splash-Tight | ||||||||||
| VHP Compatible | - | Yes | |||||||||||
| Power | 24 VDC | ||||||||||||
| Dimensions | 10.5” (w) x 7.65” (h) x 3.35” (d) [26.67 x 19.43 x 8.51 cm] | 1.7”(l) x 4.2”(w) x 2.5”(h) [4.3 x 10.7 x 6.3 cm] | 3.5"(l) x 4.2"(w) x 3.3"(h) [8.89 x 10.66 x 8.38 cm] | 1.7"(l) x 4.2"(w) x 3"(h) [4.3 x 10.7 x 7.6 cm] | 5.4” (l) x 4.6” (h) x 1.65” (d) [13.72 x 11.68 x 4.19 cm] | 4.2" (l) x 2.0" (w) x 3.7" (h) [10.7 x 5.08 x 9.398 cm] | |||||||
| Weight | 7.0 lb (3.18 kg) | 0.78 lb (0.35 kg) | 0.97 lb (0.44 kg) | 2 lb (0.90 kg) | 0.97 lb (0.44 kg) | 17.3 oz (0.49 kg) | 15.6 oz (0.44 kg) | ||||||
Environmental Conditions |
|||||||||||||
| Operating | 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing | ||||||||||||
| Storage | 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing | ||||||||||||
Accessories |
|||||||||||||
| Included | Operating Manual, Purge Filter, Power Supply, Power Cord | Operating Manual on CD | |||||||||||
| Optional | Isokinetic Sampling Probe, Sample Tubing, Cabling | Printed Operating Manual; Isokinetic Sampling Probes; Vacuum Tubing; Sample Tubing; Data Cable; Purge Filter; Power Supply; High-Pressure Diffuser (not available for 2012); RS-232 Interface cable and adapter; USB to Serial Port Converter; REMOTE Mounting Bracket. | Printed Operating Manual; RS-485 Hub with Power Supply; RS-232 Communication Cable and Adapter; USB to Serial Port Converter; Network Adapter; Wireless Network Adapter; Isokinetic Sampling Probes; Vacuum Tubing; Sample Tubing; Data Cable; Purge Filter; Power Supply; Temperature/ Relative Humidity Probe; 8’ T/RH Probe Extension Cable; REMOTE Mounting Bracket; LMS XChange, LMS Express; Express RT, LMSNet software; RS-485 Communication Kit; High-Pressure Diffuser (not available for 2014) | Isokinetic Sampling Probe, Sample Tubing, Cabling, Purge Filter, RS-485 Hub | |||||||||
Using state-of-the-art Long Life Laser Diode technology, the Lighthouse Remote 1104LD is an industry first- a laser diode based remote particle counter with a sensitivity of 0.10 micron at a high flow rate of 1.0 CFM (28.3 LPM) that uses an optics and photodiode system designed to reduce or eliminate the temperature issues associated with high power laser diode sensors. Designed with reliability and quality in mind, the Remote 1104LD features our long-life laser diode technology that provides higher concentration limits, a better signal to noise ratio and requires less routine maintenance than conventional HeNe laser-based particle counters. The Remote 1104LD supplies continuous real time data at a cost-effective price per point. Very simple to integrate with large facility monitoring and management systems, the Remote 1104LD can transfer up to 8 channels of simultaneous particle count data via RS-485 MODBUS.
Key Features:
