Home | Remote LPC 0.5 micron (4-20mA Output)

Remote LPC 0.5 micron (4-20mA Output)

Technical Details

	LPC 0.1 μm (MODBUS)	LPC 0.1 µm (4-20mA)	LPC 0.2 μm (MODBUS)	LPC 0.2 μm (4-20mA)	LPC 0.3 μm (MODBUS)	LPC 0.3 μm (4-20mA)	LPC 0.5 μm (MODBUS)	LPC 0.5 μm (4-20mA)
Specifications
Size Range	0.1 – 0.5 µm	0.1 – 0.5 µm	0.2 – 2.0 µm	0.2 –2.0 µm	0.3 – 3.0 µm	0.3 – 3.0 µm	0.5 – 100.0 µm	0.5 – 100.0 µm
Channel Sizes	Standard: 0.1, 0.2, 0.3, 0.5 µm	Standard: 0.1, 0.2μm; Optional: 0.1, 0.3µm; 0.1, 0.5µm	Standard: 0.2, 0.3, 0.5, 1.0μm; 0.2, 0.5, 1.0, 2.0μm	Standard: 0.2, 0.3μm Optional: 0.2, 0.5μm; 0.2, 1.0μm; 0.2, 2.0μm	Standard: 0.3, 0.5, 0.7, 1.0μm; 0.3, 0.5, 1.0, 3.0μm	Standard: 0.3, 0.5μm Optional: 0.3, 0.7μm; 0.3, 2.0μm; 0.3, 3.0μm	Standard: 0.5, 0.7, 1.0, 2.0μm; 0.5, 1.0, 2.0, 3.0μm; 0.5, 1.0, 2.0, 5.0μm	Standard: 0.5, 1.0μm Optional: 0.5, 2.0μm; 0.5, 5.0μm
Laser Source	Laser Diode
Flow Rate	100ml/min
Calibration	NIST Traceable
Data Storage	Rotating Buffer, 2000 Records	-	Rotating Buffer, 2000 Records	-	Rotating Buffer, 2000 Records	-	Rotating Buffer, 2000 Records	-
Communication Modes	RS-232 via RJ45 to PC, RS485/Modbus	RS-232 via RJ45 to PC, 4-20mA	RS-232 via RJ45 to PC, RS485/Modbus	RS-232 via RJ45 to PC, 4-20mA	RS-232 via RJ45 to PC, RS485/Modbus	RS-232 via RJ45 to PC, 4-20mA	RS-232 via RJ45 to PC, RS485/Modbus	RS-232 via RJ45 to PC, 4-20mA
LED Indicators	Power, Service, Sampling	Power and Service	Power, Service, Sampling	Power, Service	Power, Service, Sampling	Power, Service, Sampling	Power, Service, Sampling	Power, Service, Sampling
Supporting Software	LMS Express, Express RT and RT+, LMSNet
Concentration Limit	64,000 counts/ml @ 5% Coincidence Error		4,000 counts/ml @ 5% Coincidence Error
External Alarm Output	Normal Open Dry Contact Rated 0 – 60v AC/DC 1 Amp
Enclosure	Stainless Steel
Sample Inlet/Outlet Connection	1/4" Flaretek™
Sample Temperature	32 - 302°F (0 – 150 °C)
Sample Pressure	150 PSI
Wetted Surface Materials	Quartz, PTFE, PFA
Power	24V DC
Dimensions	5.7"(L) x 5.2"(W) x 3"(H) [14.47 x 13.2 x 7.6 cm]
Weight	3.5 lbs (1.58 kg)
Environmental Conditions
Operating	50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing
Storage	14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing
Accessories
Included	Operating Manual on CD; Power Supply; Micro90® cleaning solution; Sample Tubing; Cabling; Cleaning Brush	Operating Manual on CD; Power Supply; Flow Cell cleaning brush; Micro90® solution; tubing.	Operating Manual on CD; Power Supply; Micro90® cleaning solution; Sample Tubing; Cabling; Flaring Kit; Cleaning Brush	Operating Manual on CD; Power Supply; tubing; Flow Cell cleaning brush; Micro90® Solution	Operating Manual on CD; Power Supply; Micro90® cleaning solution; Sample Tubing; Cabling; Flaring Kit; Cleaning Brush	Operating Manual on CD; Power Supply; tubing; Flow Cell cleaning brush; Micro90® Solution	Operating Manual on CD; Power Supply; Micro90® cleaning solution; Sample Tubing; Cabling; Flaring Kit; Cleaning Brush	Operating Manual on CD; Power Supply; tubing; Flow Cell cleaning brush; Micro90® Solution
Optional	Printed Operating Manual; Network Adapter; Wireless Network Adapter; Flow Control device; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flowmeter - Teflon™ PFA; REMOTE Mounting Bracket; LMS Express, Express RT; LMSNet software	Printed Operating Manual; Flow Control Device; Sample Tubing; Cabling; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flow Meter - Teflon™ PFA; Remote Mounting Bracket.	Printed Operating Manual; Network Adapter; Wireless Network Adapter; Flow Control device; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flowmeter - Teflon™ PFA; REMOTE Mounting Bracket; LMS Express, Express RT software; LMSNet software	Printed Operating Manual; Flow Control Device; Sample Tubing; Cabling; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flow Meter - Teflon™ PFA; Remote Mounting Bracket.	Printed Operating Manual; Network Adapter; Wireless Network Adapter; Flow Control device; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flowmeter - Teflon™ PFA; REMOTE Mounting Bracket; LMS Express, Express RT software; LMSNet software	Printed Operating Manual; Flow Control Device; Sample Tubing; Cabling; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flow Meter - Teflon™ PFA; Remote Mounting Bracket.	Printed Operating Manual; Network Adapter; Wireless Network Adapter; Flow Control device; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flowmeter - Teflon™ PFA; REMOTE Mounting Bracket; LMS Express, Express RT software; LMSNet software	Printed Operating Manual; Flow Control Device; Sample Tubing; Cabling; Flaring Kit; Flare nuts; LPC Stand with Flow Meter mount; LPC Flowmeter - Aluminum; LPC Flow Meter - Teflon™ PFA; Remote Mounting Bracket.

Get a Quote

GET A QUOTE

First Name	(*)
Last Name	(*)
Company Name	(*)
Email	(*)
Phone	(*)
Address	(*)
Country	(*)
I agree to allow Lighthouse Worldwide Solutions to use my information for marketing purposes.
State	(*)
Primary Industry	(*)

Message	(*)
By sending in this form I agree with Privacy Policy, Terms and Conditions.

(*) Required Fields

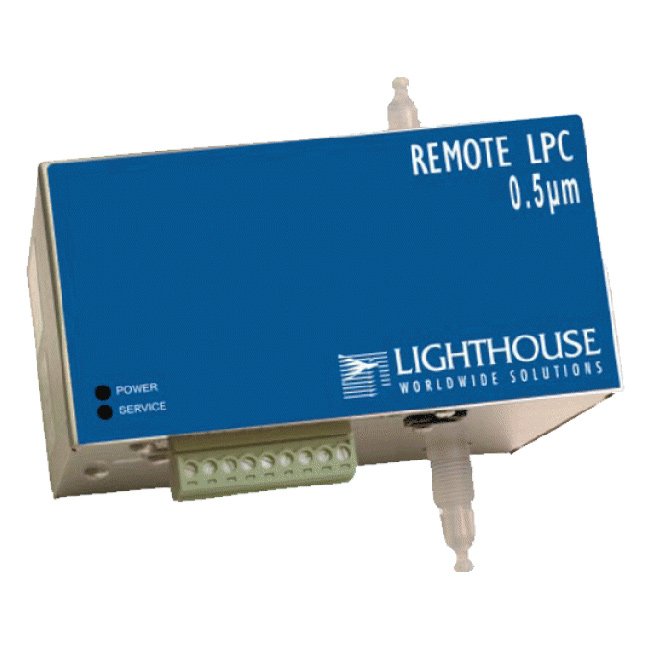

Incorporating the latest in laser optical particle counting technology and utilizing full stream volumetric particle counting technology, Lighthouse designed the Remote Liquid Particle Counter 0.5μm (4-20mA Output) for continuous trouble-free operation.

With a minimum sensitivity range of 0.5 μm and flow rate of 100 mL/min, the Remote Liquid Particle Counter 0.5μm provides real-time continuous data collection at a cost-effective price per point.

This compact liquid particle counter provides versatile mounting options and can be installed where space is at a premium.

The Remote Liquid Particle Counter 0.5μm integrates seamlessly into large facility monitoring and management systems using 4-20mA output.

Features:
