ActiveCountR
section2 Compliant In-line Viable Sampling Third party validated, the Lighthouse line of integrated viable air sampler solutions willhelp you meet all of your viable sampling
|
ActiveCount100H |
ActiveCount25H |
ActiveCount100 |
Specifications |
|||
Flow Rate |
100 liters/minute ± 4% |
25 liters/minute ± 5% |
100 liters/minute ± 4% |
Autoclavable Impactor Head |
316L Stainless Steel with 88 holes, |
316L Stainless Steel with 88 holes, |
Aluminum with 300 holes, 19m/sec |
Autoclavable Dust Cover |
316L Stainless Steel |
316L Stainless Steel |
Aluminum (316L Stainless Steel available) |
Baseplate |
Removable, magnetic, autoclavable |
Non- Removable |
|
Exhaust |
HEPA filtered, captures 99.97% of particles at 0.3 μm |
Non-filtered |
|
Battery |
8 Hrs. continuous, 10 Hrs. normal sampling |
6 hrs. continuous, 8 hrs. normal sampling
|
|
Weight |
6.75 lbs |
Weight 5.80 lbs (AL), 6.75 lbs (SS) |
|
Petri dish compatibility |
Compatible with standard 90 mm petri dish (85mm-92mm), includes adjustment tool |
||
Sample volume presets |
8 programmable volume presets |
||
User names |
50 programmable user names |
||
Location names |
400 programmable location names |
||
Display |
3.5 inch (8.9 cm) color touch screen |
||
LED light |
RGB LED light for status, alerts, and alarms |
||
Speaker |
Adjustable speaker volume |
||
Time/Date formats |
Time format 12 or 24 hours, Date formats YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY |
||
USB port |
USB 2.0 port (8 GB flash drive included) |
||
Data records |
Unlimited; saved on USB flash drive in .csv file format |
||
Log data fields |
Start date, time, location, user, sample duration, flow duration, volume, cycles, status |
||
Handle - monopod mountable |
Monopod mountable handle 3/8-16, includes 1/4-20 threaded adapter |
||
Enclosure |
316L Stainless Steel |
||
Power |
24 VDC power adapter (100-240V ~ 1.5A 50-60Hz) |
||
Calibration |
Annual |
||
Operating environment |
0-90% humidity non condensing, 0-40°C sampling, 0-35°C charging |
||
Dimensions |
7.6”(h) x 4.7“(w) x 4.7”(d) [ 19.4 (h) x 12.0 (w) x 12.0 (d) cm] |
||
Carry case |
Seahorse case with Lighthouse Worldwide Solutions logo |
||
Included |
|||
|
ActiveCount Unit, sample head, dust cover, baseplate, blower inlet seal (HEPA units only), petri dish adjustment tool, |
||
Optional |
|||
|
Remote sampling adapter with ISO probe, compressed gas sampler, tubing, cleanroom monopod, IQ/OQ protocols. |

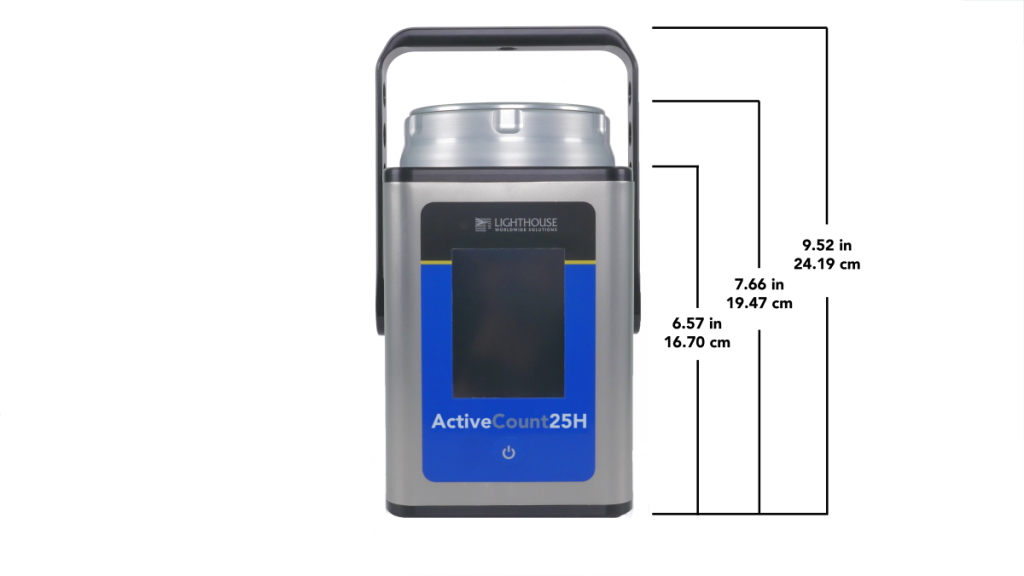

The ActiveCount25H is a high-performance portable active air sampler suitable for use in cleanrooms and aseptic environments. The ActiveCount25H is ISO 14698 compliant with a d50 collection efficiency of 1 micron and HEPA filtered exhaust ports designed to avoid re-aspiration of sampled air. The ActiveCount25H offers self-adjusting flow control to ensure accurate sampling and continuous & periodic sampling modes for optimum sampling flexibility.
The impactor head, dust cover, and adjustable magnetic petri dish holder are entirely autoclavable. You will find these components easily removed and installed on the chemically compatible and sanitizable stainless steel enclosure of the AC25H.
The optional remote sample head minimizes disturbance of unidirectional airflow within a biological safety cabinet or laminar flow bench. The gas sample option provides the versatility needed to accomplish all your critical sampling requirements.
Features:
1 Normal Use is defined as sampling 10 minutes, pausing 5 minutes and repeating.
2 Patent Pending
Title | Download |
---|---|
Datasheet -ActiveCount100H, ActiveCount25H | Download |
section2 Compliant In-line Viable Sampling Third party validated, the Lighthouse line of integrated viable air sampler solutions willhelp you meet all of your viable sampling
• Designed for ISO 14698 Compliance
• 1 CFM (28.3 LPM) sample rate
